ultra-fast DOCSIS 3.1 performance
Stream, game, conference and more with confidence. DOCSIS 3.1 supports speeds up to 10x faster with higher efficiency. Also backwards compatible with 32x8 DOCSIS 3.0 so you can future proof your network.

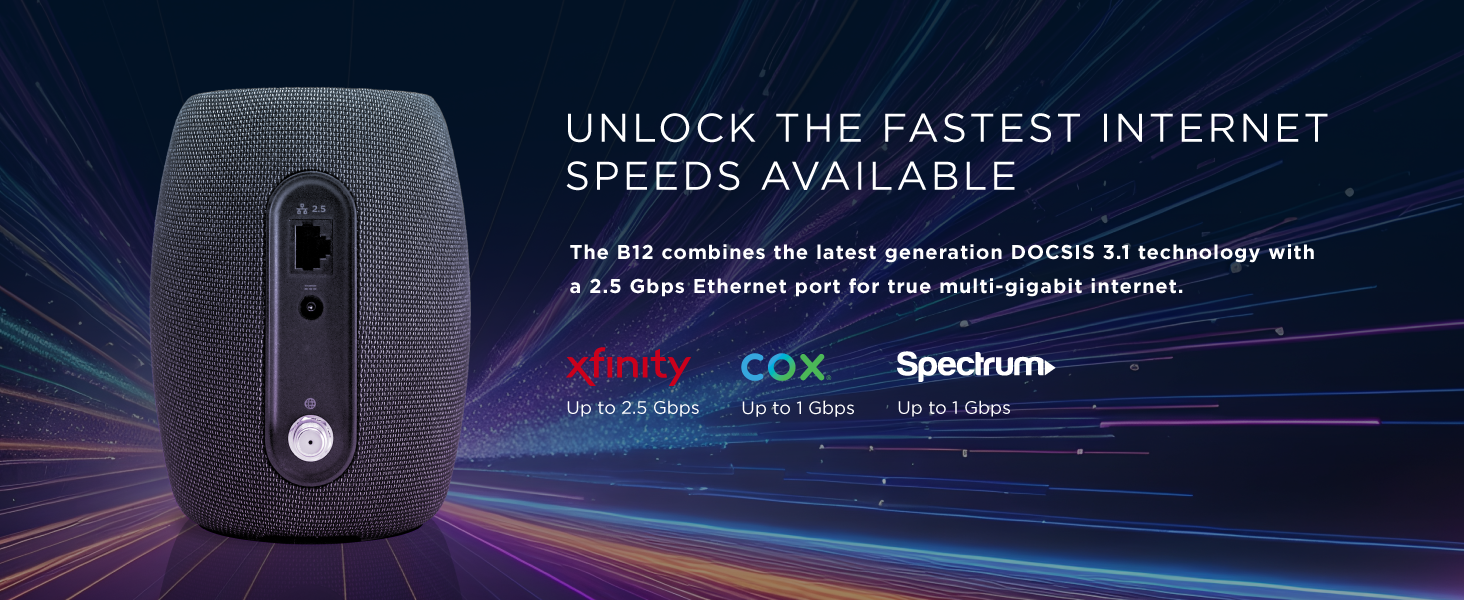

true multi-gigabit speed
Don’t let your cable modem throttle your speed. A 2.5 Gbps Ethernet port delivers high-speed connectivity to even the fastest routers and computers.
works with any router
Seamlessly pair with any WiFi router to connect all your wireless devices. This cable modem does not have a built-in wireless router or telephone capability.
superior, but pays for itself
Savings up to $168 per year on modem rental fees with your internet provider. Certified for Comcast Xfinity, Cox, and Spectrum and compatible with IPv6.

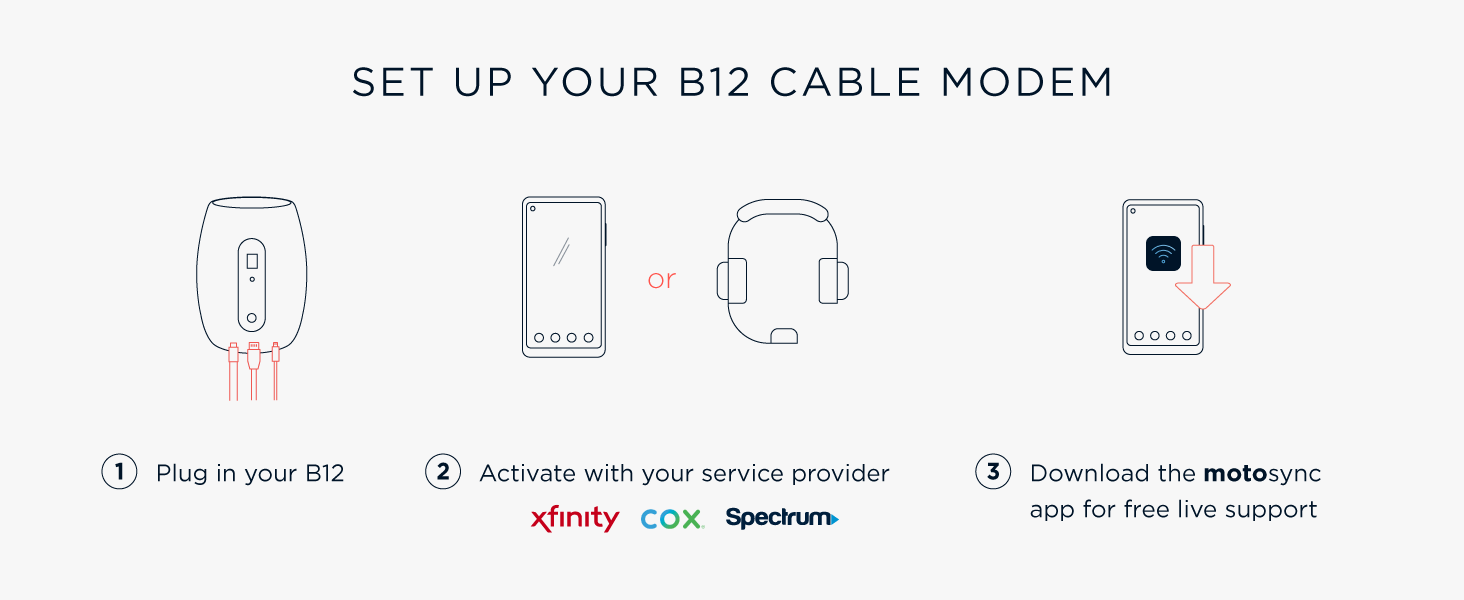

simple setup and use
Easy self-installation. Comes with a 2-year warranty and free support from our team of US-based technicians.
motosync app
It's like having our product experts in your home with one tap using in-app live chat support.
-
General
Cable Modem
- F-type female 75 Ω (standard coaxial connector)
DOCSIS Standards
- DOCSIS 3.1 plus 32x8 DOCSIS 3.0
Downstream
- Data Rate: Up to 2.5 Gbps*
- Bonded Channels: Up to 32 SCQAM (DOCSIS 3.0) or 2 OFDM (DOCSIS 3.1)
- Frequency Range: 108 to 1002MHz
- Modulation: 64, 256, 1024, 2048, 4096 QAM
- Operating Level Range: -15 to +15 dBmV
Upstream
- Data Rate: Up to 766 Mbps*
- Bonded Channels: Up to 8 SCQAM (DOCSIS 3.0) or 2 OFDMA (DOCSIS 3.1)
- Frequency Range: 5-42 and 5-85 MHz
-
Operating Level Range:
+65 dBmV (64 QAM, single channel)
+57 dBmV (64QAM, 4-8 channels)
+65 dBmV (16 QAM, single channel)
+65 dBmV (OFDMA)
Network:
-
Ethernet Interface:
One (1) 100/1000/2500 Gigabit Ethernet LAN port, with Auto-MDI/MDIX -
Network Protocols:
IPv4, IPv6, TCP, UDP, ARP, ICMP, DHCP, FTP, TFTP, SNMP, HTTPS -
Application Protocol:
SNMP v1/v2/v3
B12 BUTTONS AND PORTS
Ethernet port (2.5 Gbps)
- Connect WiFi router or wired device.
Power port
- Plug the supplied power adapter into an electrical outlet and connect to the power port.
Coax port
- Connect the coax port to a cable wall outlet.
Reset button
- Located on bottom of device. Using a paper clip or similar object, press for 10 seconds to reset modem to factory defaults.
* Data throughput will be reduced by network overhead. Delivered data speeds are also dependent upon the configuration and capacity of the data-over-cable service on which the B12 is used.
** This cable modem does not have a built-in wireless router and does not have telephone jacks for support of voice phone calls.
